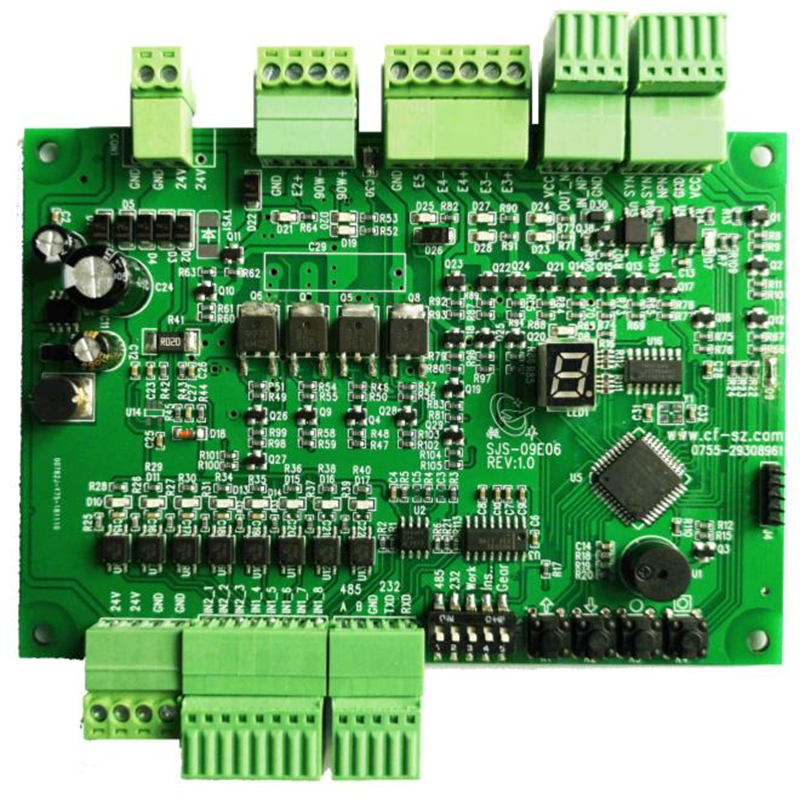

Elevator Control Board-SJS-09E06-A

Elevator Control Board-SJS-09E06-A

   Key Features:

    ✫Main control DC variable-speed motor with brake,24V/6A(0-15A selectable)

    ✫Current monitoring,over-current protection,stall prevention over-current protection

    ✫Analog-controlled variable frequency soft start,adjustable acceleration,constant velocity,deceleration to position

    ✫With side conveyor discharge function(24V/1.5A)

    ✫With a locking pick-up door(prevent hand pinching if door is opened while elevator is in motion)

    ✫Low-cost modular motion system(a cost-effective alternative to stepper motor)

    ✫4 reserved NPN input channels for multiple monitoring sensor

    ✫2 reserved bidirectional output 24V/2A(capable of controlling motor forward and reverse rotation)

    ✫Supporting reading the status of 8 input channels

    ✫Selectable RS232 or RS485 interface,RS485 support multi-drop networking
