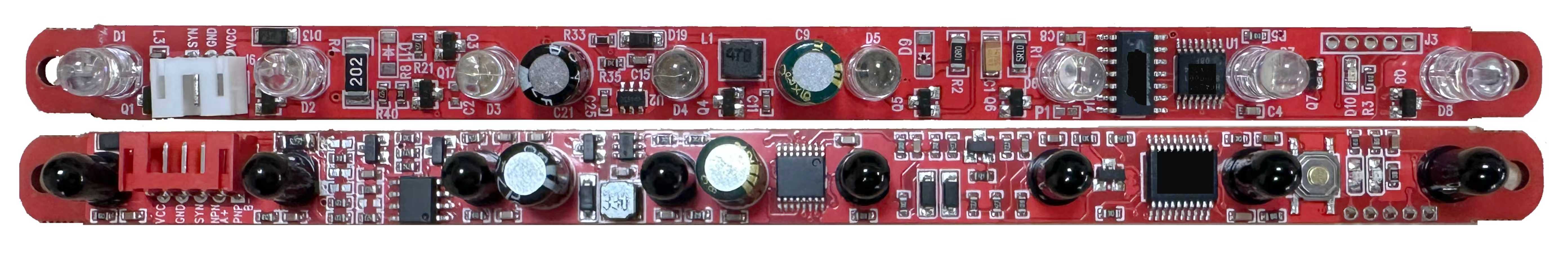

Drop Sensor Board-JJX Series
Operating voltage:10V-29V
Detection range:within 200 meters
Selectable number of beams:2,4,6,8,10....
Beam pitch:10,15,20....
Board width:10mm
Response time:≤ 1.5mS
Current consumption:≤50mA
For further product details,pls contact us by email or WhatsApp
Drop Sensor Board-JJX Series
l Features:
☆Dual MCU control circuit with Harvard architecture
☆Redundant design,alarm triggered by any transceiver failure
☆High-speed scanning lower than 0.8ms,with real-time self-testing function
☆Far-infrared wavelength,strong ambient light resistance
☆Strong electromagnetic interference resistance,excellent reliability
☆Multiple signal output to be optioned(NPN/PNP/RS485,232/PWM/A0 analog output)
☆Simple wiring and easy installation
☆Compact design(L160xW10xT13mm),optimize space utilization
l Functions:
☆Drop detection
☆Occlusion detection
☆Linear rail positioning
☆Trigger control
☆Size measurement
☆Position shift detection and alignment correction
l Applications:
☆Vending machine,Punch,Plate shears,Hydraulic press,ICT,Various automation......
☆Robotic arm,Safety door,Machine guarding,Packing and sorting,Material handling,Access control......

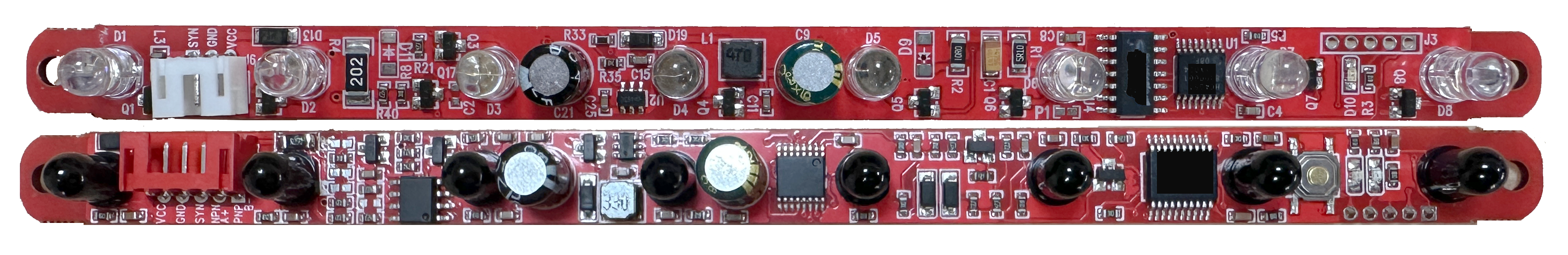

l Appearance and Size:
JJX Series
l Technical Parameter:
l Troubleshooting:
